websocket服务端功能(双向消息、群组)

WebSocket介绍

WebSocket是一种在单个TCP连接上进行全双工通信的协议。WebSocket通信协议于2011年被IETF定为标准RFC 6455，并由RFC7936补充规范。WebSocket API也被W3C定为标准。
WebSocket使得客户端和服务器之间的数据交换变得更加简单，允许服务端主动向客户端推送数据。在WebSocket API中，浏览器和服务器只需要完成一次握手，两者之间就直接可以创建持久性的连接，并进行双向数据传输。

直接开始进入正题–SpringBoot WebSocket 开始

1、搭建环境

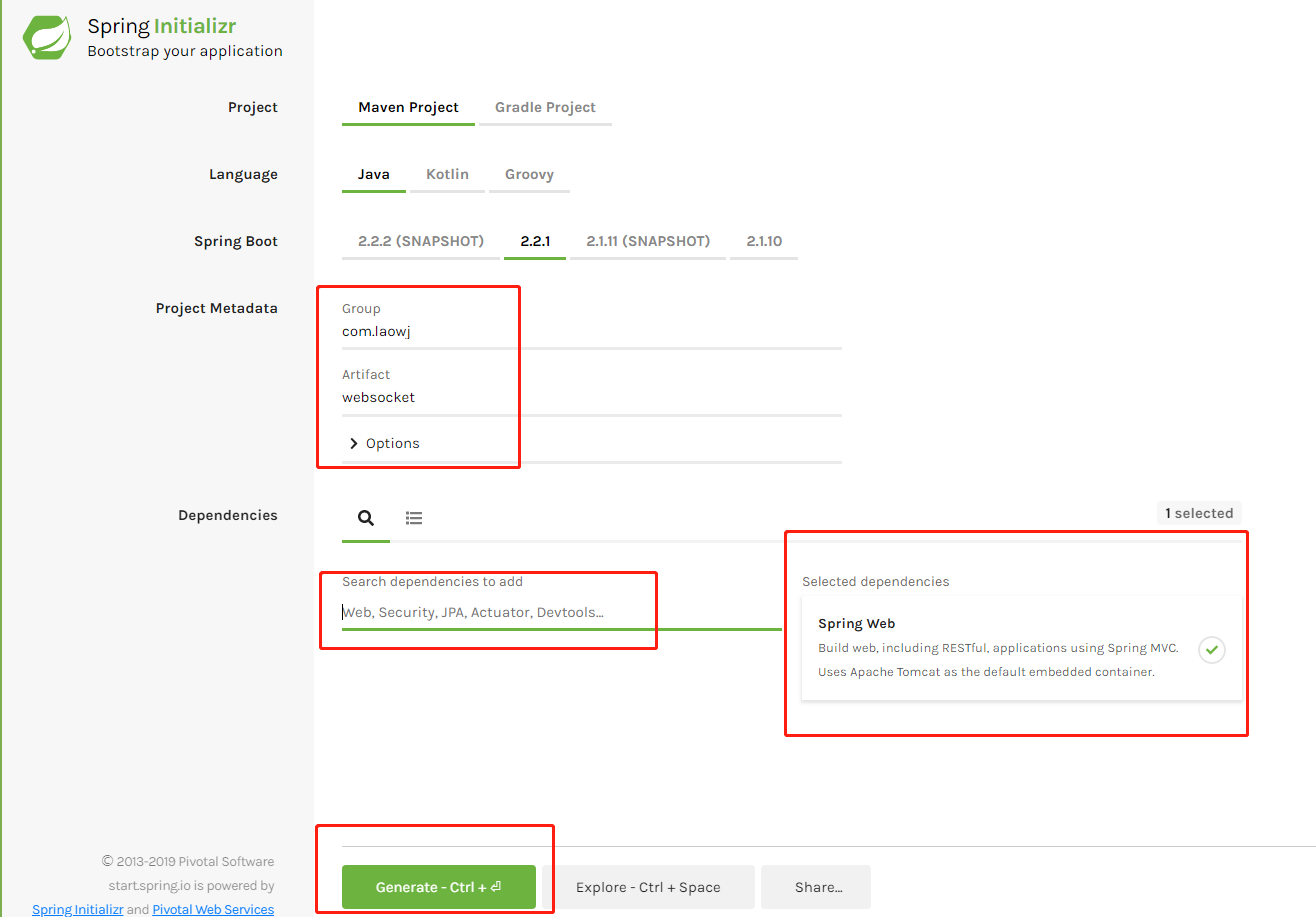

你还在手动搭建项目码？都9102年了还在手动，我们早都全自动了。不会的请戳这里https://start.spring.io/

点击生成，浏览器会下载一个压缩包。这就是你要的项目了。是不是很简单、很easy、很nice。

2、准备工作

项目采用IDEA + Maven + JDK1.8 + Netty4.1.43
https://mvnrepository.com/artifact/io.netty/netty-all/4.1.43.Final

maven地址如下：

<!-- https://mvnrepository.com/artifact/io.netty/netty-all -->
<dependency>
    <groupId>io.netty</groupId>
    <artifactId>netty-all</artifactId>
    <version>4.1.43.Final</version>
</dependency>

3、开始集成Netty

websocket启动类
我们使用的实现ApplicationRunner进行项目启动加载启动我们的netty服务。当然实现CommandLineRunner也可以，他两个区别在于run方法输入参数（封装获取方式），大家自行斟酌自行选择。
还有一种方式就是@PostConstruct注解在启动的方法上也可以，但是我在使用springboot scheduling(定时器)时发现定时器不会初始化不会触发。我也是百思不得其姐，SO放弃了…

package com.laowj.websocket;

import com.laowj.websocket.handler.WebSocketServerHandler;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.Channel;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.stereotype.Component;

/**
 * web socket 服务类
 */
@Component
public class WebSocketService implements ApplicationRunner {

    @Value("${websocket.port}")
    private int socketPort;

    @Override
    public void run(ApplicationArguments args) throws Exception {
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap b = new ServerBootstrap();
            b.group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch)
                                throws Exception {
                            ChannelPipeline pipeline = ch.pipeline();
                            pipeline.addLast("http-codec",
                                    new HttpServerCodec());
                            pipeline.addLast("aggregator",
                                    new HttpObjectAggregator(65536));
                            pipeline.addLast("http-chunked",
                                    new ChunkedWriteHandler());
                            pipeline.addLast("handler",
                                    new WebSocketServerHandler());
                            pipeline.addLast("logger",new LoggingHandler(LogLevel.INFO));
                        }
                    });

            Channel ch = b.bind(socketPort).sync().channel();
            System.out.println("Web socket server started at port " + socketPort
                    + '.');
            System.out
                    .println("Open your browser and navigate to http://localhost:"
                            + socketPort + '/');

            ch.closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

重点来了、这块需要那笔记、敲黑板划重点。考试要考的
websocket消息处理类WebSocketServerHandler

package com.laowj.websocket.handler;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelFutureListener;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.handler.codec.http.DefaultFullHttpResponse;
import io.netty.handler.codec.http.FullHttpRequest;
import io.netty.handler.codec.http.FullHttpResponse;
import io.netty.handler.codec.http.QueryStringDecoder;
import io.netty.handler.codec.http.websocketx.*;
import io.netty.util.Attribute;
import io.netty.util.AttributeKey;
import io.netty.util.CharsetUtil;
import io.netty.util.concurrent.GlobalEventExecutor;

import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import java.util.logging.Level;
import java.util.logging.Logger;

import static io.netty.handler.codec.http.HttpHeaderNames.HOST;
import static io.netty.handler.codec.http.HttpMethod.GET;
import static io.netty.handler.codec.http.HttpResponseStatus.*;
import static io.netty.handler.codec.http.HttpUtil.isKeepAlive;
import static io.netty.handler.codec.http.HttpUtil.setContentLength;
import static io.netty.handler.codec.http.HttpVersion.HTTP_1_1;

public class WebSocketServerHandler extends SimpleChannelInboundHandler<Object> {
    private static final Logger logger = Logger
            .getLogger(WebSocketServerHandler.class.getName());

    private WebSocketServerHandshaker handshaker;

    // websocket 服务的 uri
    private static final String WEBSOCKET_PATH = "/ws_protocol";

    // 一个 ChannelGroup 代表一个频道
    public static Map<String, ChannelGroup> channelGroupMap = new ConcurrentHashMap<>();

    // 本次请求的 code
    private static final String HTTP_REQUEST_STRING = "token";

    /**
     * 存储token
     */
    private static AttributeKey<String> TOKEN_CHANNEL_KEYS = AttributeKey.valueOf("TOKEN.CHANNEL.KEYS");

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, Object msg) throws Exception {
        // 传统的HTTP接入
        if (msg instanceof FullHttpRequest) {
            handleHttpRequest(ctx, (FullHttpRequest) msg);
        }
        // WebSocket接入
        else if (msg instanceof WebSocketFrame) {
            handleWebSocketFrame(ctx, (WebSocketFrame) msg);
        }
    }

    private void handleHttpRequest(ChannelHandlerContext ctx,
                                   FullHttpRequest req) throws Exception {

        // 如果HTTP解码失败，返回HTTP异常
        if (!req.decoderResult().isSuccess()
                || (!"websocket".equals(req.headers().get("Upgrade")))) {
            sendHttpResponse(ctx, req, new DefaultFullHttpResponse(HTTP_1_1,
                    BAD_REQUEST));
            return;
        }

        // Allow only GET methods.
        if (req.method() != GET) {
            sendHttpResponse(ctx, req, new DefaultFullHttpResponse(HTTP_1_1, FORBIDDEN));
            return;
        }

        if ("/favicon.ico".equals(req.uri()) || ("/".equals(req.uri()))) {
            sendHttpResponse(ctx, req, new DefaultFullHttpResponse(HTTP_1_1, NOT_FOUND));
            return;
        }

        QueryStringDecoder queryStringDecoder = new QueryStringDecoder(req.uri());
        Map<String, List<String>> parameters = queryStringDecoder.parameters();

        if (parameters.size() == 0 || !parameters.containsKey(HTTP_REQUEST_STRING)) {
            System.err.printf(HTTP_REQUEST_STRING + "参数不可缺省");
            sendHttpResponse(ctx, req, new DefaultFullHttpResponse(HTTP_1_1, NOT_FOUND));
            return;
        }

        String token = parameters.get(HTTP_REQUEST_STRING).get(0);

        // 用户唯一标识不存在返回,则新增一个频道 ChannelGroup
        if (!channelGroupMap.containsKey(token)) {
            channelGroupMap.put(token, new DefaultChannelGroup(GlobalEventExecutor.INSTANCE));
        }
        // 确定有唯一标识,才将客户端加入到频道中
        channelGroupMap.get(token).add(ctx.channel());
        Attribute<String> tokenAttr = ctx.channel().attr(TOKEN_CHANNEL_KEYS);
        tokenAttr.setIfAbsent(token);

        // 构造握手响应返回
        WebSocketServerHandshakerFactory wsFactory = new WebSocketServerHandshakerFactory(
                getWebSocketLocation(req), null, false);
        handshaker = wsFactory.newHandshaker(req);
        if (handshaker == null) {
            WebSocketServerHandshakerFactory
                    .sendUnsupportedVersionResponse(ctx.channel());
        } else {
            handshaker.handshake(ctx.channel(), req);
        }
    }

    private void handleWebSocketFrame(ChannelHandlerContext ctx,
                                      WebSocketFrame frame) throws Exception {

        // 判断是否是关闭链路的指令
        if (frame instanceof CloseWebSocketFrame) {
            handshaker.close(ctx.channel(),
                    (CloseWebSocketFrame) frame.retain());
            return;
        }
        // 判断是否是Ping消息
        if (frame instanceof PingWebSocketFrame) {
            ctx.channel().write(
                    new PongWebSocketFrame(frame.content().retain()));
            return;
        }
        // 本例程仅支持文本消息，不支持二进制消息
        if (!(frame instanceof TextWebSocketFrame)) {
            throw new UnsupportedOperationException(String.format(
                    "%s frame types not supported", frame.getClass().getName()));
        }

        // 返回应答消息
        String request = ((TextWebSocketFrame) frame).text();
        if (logger.isLoggable(Level.FINE)) {
            logger.fine(String.format("%s received %s", ctx.channel(), request));
        }
        ctx.channel().write(new TextWebSocketFrame(" 收到客户端请求："+ request ));
    }

    private static void sendHttpResponse(ChannelHandlerContext ctx,
                                         FullHttpRequest req, FullHttpResponse res) {
        // 返回应答给客户端
        if (res.status().code() != 200) {
            ByteBuf buf = Unpooled.copiedBuffer(res.status().toString(),
                    CharsetUtil.UTF_8);
            res.content().writeBytes(buf);
            buf.release();
            setContentLength(res, res.content().readableBytes());
        }

        // 如果是非Keep-Alive，关闭连接
        ChannelFuture f = ctx.channel().writeAndFlush(res);
        if (!isKeepAlive(req) || res.status().code() != 200) {
            f.addListener(ChannelFutureListener.CLOSE);
        }
    }

    @Override
    public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
        ctx.flush();
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause)
            throws Exception {
        cause.printStackTrace();
        close(ctx);
    }

    private void close(ChannelHandlerContext ctx){
        Attribute<String> tokenAttr = ctx.channel().attr(TOKEN_CHANNEL_KEYS);
        String token = tokenAttr.get();
        if (token != null && channelGroupMap.containsKey(token)) {//从群组中移除
            ChannelGroup channelGroup = channelGroupMap.get(token);
            int len = channelGroup.size();
            if (len <= 1) {//群组就一个人直接移除群主
                channelGroupMap.remove(token);
            }else{
                channelGroupMap.get(token).remove(ctx.channel());
            }
        }
        ctx.close();
    }

    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        close(ctx);
    }

    private static String getWebSocketLocation(FullHttpRequest req) {
        String location = req.headers().get(HOST) + WEBSOCKET_PATH;
        return "ws://" + location;
    }
}

测试与实战

1、采用html进行测试
源码如下：

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
</head>
<body>

<form onsubmit="return false;">
    <h1> Netty WebSocket 协议 </h1>
    <h3>客户端请求消息</h3>
    <textarea id="requestText" style="width:500px;height:200px;"></textarea>
    <input type="button" value="发送WebSocket请求消息" onclick="send(document.getElementById('requestText').value)"/>
    <h3>服务端返回的应答消息</h3>
    <textarea id="responseText" style="width:600px;height:200px;"></textarea>
</form>

<script type="text/javascript">
    function guid() {
        return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, function(c) {
            var r = Math.random()*16|0, v = c == 'x' ? r : (r&0x3|0x8);
            return v.toString(16);
        });
    }
    window.WebSocket = window.WebSocket || window.MozWebSocket;
    if (!window.WebSocket){
        alert("你的浏览器不支持websocket协议");
    }else{
        var socket = new WebSocket("ws://localhost:5052/ws_protocol?token="+guid());
        socket.onmessage = function (event) {
            var ta = document.getElementById('responseText');
            ta.value = ta.value + "\r\n" + event.data
        };
        socket.onopen = function (event) {
            alert("websocket连接建立成功...");
        };
        socket.onclose = function (event) {
            alert("连接关闭");
        };
        function send(message) {
            if (!window.WebSocket) {
                return;
            }
            if (socket.readyState == WebSocket.OPEN) {
                socket.send(message);
            }
            else {
                alert("WebSocket not supported by this browser");
            }
        }
    }
</script>
</body>
</html>
